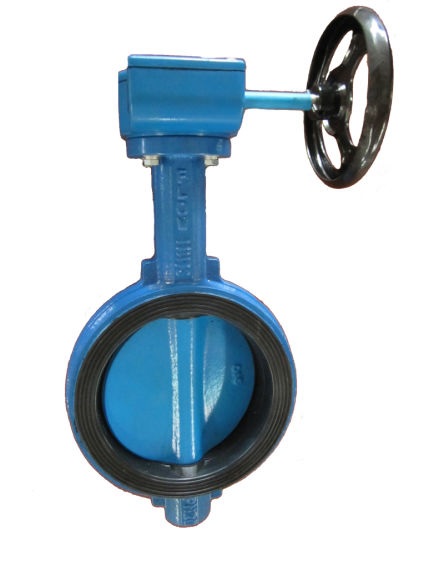

Butterfly Valve – Standard

Description

A butterfly valve is a quarter-turn valve used to regulate flow. A metal disc in the body of the valve is positioned perpendicular to the flow in the closed position, and rotated one quarter of a turn to be parallel to the flow in the fully opened position. Intermediate rotations allow regulation of liquid flow.



Features

• Vulcanized disc design for bubble-tight shutoff at 300PSI.
• Flag type position indicator.
• Low torque operation, high cycle life.
• Light weight.
• With built-in supervisory switch.
• Stem drive by keys, parallel or diagonal square or at head
• Design Standard : MSS SP-67
• Connection Ends : Groove to AWWA C606
• Top Flange Standard : ISO 5211
• Working Pressure : 300PSI,175PSI, 200PSI and 250PSI available upon request.
• Temperature Range : 0o- 80o
• Coating : Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA, C550 or painting upon request

Specification

·         Valve Body : EN-GJS-450-10

·         Seat : DN40~400: EPDM & Backing, DN450~800: EPDM Vulcanized on Valve Body or (Option- NBR/Fluororubber&Backing EPDM/NBR Vulcanized on Valve Body Soft Seat in EPDM/NBR)

·         Disc : EN-GJS-450-10, (Option-SS304, SS316, AL-Bronze C95400)

·         Stem : DN40~350: SS420, One-Piece Stem Design, DN400~800: SS431, Two-Piece Stem Desig (Option- SS304, SS316, SS416, SS431)

·         O-Ring : EPDM, (Option- NBR)

·         Bushing : DN40~350: Nylon 1010, DN400~800: Lubricating Bronze (Option- PTFE)

·         Lever : EN-GJS-450-10, (Option- Aluminum)

·         Shaft Cover (DN400~800) : EN-GJS-450-10

·         Gear Box : EN-GJS-450-1
