Pillar Hydrant
- Description
Description
GENERAL:
“MA” Pillar Hydrants are generally manufactured according to BS EN14384:2005 standard within a strict quality
controlled environment to ISO 9001:2008.

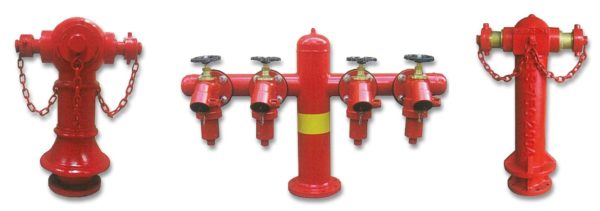

There are several models and configurations for the 2-Way and 3-Way pillar hydrant design.
Model Fig.250 – 100mm x 2-Way with 65mm Male LVT Outlets.
Model Fig.260 – 100mm x 2-Way with 65mm Oblique Landing Valves.
Model Fig.270 – 100mm x 2-Way with 2 nos 65mm Oblique Landing Valves.
Model Fig.280 – 150mm x 3-Way with 2 nos 65mm Male LVT Outlets and 1 no 125mm Male LVT Pumper outlet.
Model Fig.290 – 150mm x 3-Way with 2 nos 65mm Oblique Landing Valves and 1 no 125mm Male LVT Pumper outlet.
The outlets of the above models can be customised to suit other national standards and customer’s requirement.
FEATURES:
- Compact design.
• Robust construction.
• Easy operation.
• Reliable performance with no maintenance required.
DESIGN AND TEST PRESSURES:
Design Pressure: 16 bars
Service Test Pressure: 20 bars
Factory Test Pressure: 25 bars
HYDRANT INLET CONNECTION:
PN16 FF Flange. Other flange connection,
eg., ANSI #150 FF etc., available upon request.
MATERIALS:
Body: Speroidal Graphite Iron (SGI)
Outlets: Copper alloy and/or LG2 Gunmetal
Chain: Galvanised iron.
PAINTING FINISHES:
Internal – Epoxy coated.
External – Primer and RAL3000 “Red” finished coatings.
SPECIFICACATION
