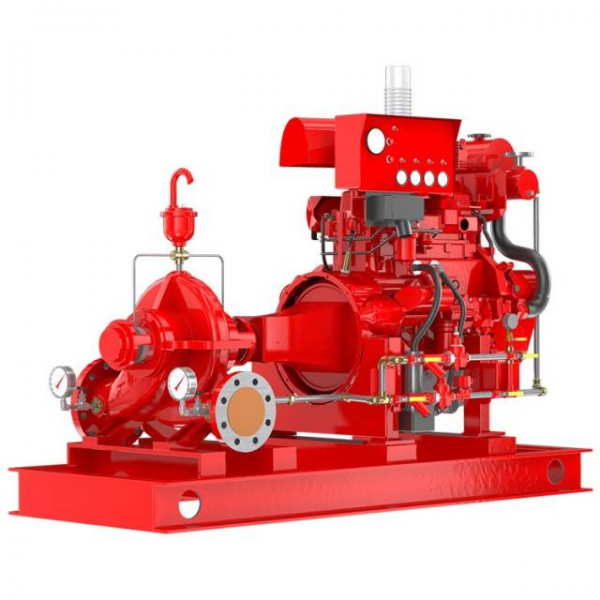

Horizontal Split Case Fire Pump

  • Description
  • Specification

Description

Micro Automation provides this pump UL listed and FM approved fire pumps with a reliable solution for your firefighting. We can offer you a complete package of services starting from engineering assistance to field start-up and periodic maintenance. Each pump set is tested in factory, prior to dispatch, as per UL, FM and NFPA standards. These pumps are covered by a warranty of one-year subject to standard terms and conditions.

SERIES: NF-S, PERFORMANCE

RATINGS: COMPREHENSIVE RANGE

Flow Rate (Min. – Max.) 300 – 8000 US GPM**
Pressure Ratings (Min. – Max.) 5.4 – 33.3 BAR**
Speed Ratings (Min. – Max.) 1470 – 3550 RPM**

** These values only indicate overall range available in this series. For the availability of any specific ratings in-details of its certification, please contact factory**

FEATURES:

  • Performance characteristics as per NFPA 20
  • Complete unit responsibility.
  • Complete in-house fabrication capabilities.
  • Horizontal Split case pumps for capacities up to 8000 USGPM.
  • Hydrostatic testing facilities.
  • Operation run test as per NFPA 20.
  • Drivers: Electric motor drive or diesel engine drive.
  • Electrical testing capabilities for motors and controllers connected to fire pumps as per NFPA standards.

It is capable to supply additional accessories wherever required.
