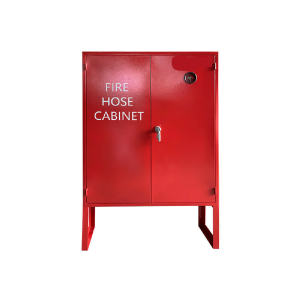

Self Standing Hose Cabinet
hose-pipe-assembly-40-mm

Hose Pipe Assembly (40 mm)

  • Description
  • Specification

Description

These Fire hose racks are designed for use in controlling incipient fire by building occupant use and conform to NFPA 14 standards for CLASS II service. The fire hose pipes are manufactured to comply with UL and FM standards.

  • Hose rack frame material made of Stainless-Steel Gr.304.
  • Provides an immediate water source for fire suppression.
  • Easy individual operation.
  • Max. service pressure of the Fire Hose Rack Assembly up to 150 psi.
  • The hose rack is designed to hold the hose with movable pins for easy and quick operation in an emergency.
  • An automatic release mechanism allows water to flow through the hose after removal of the hose and nozzle.

Standard assemblies include:

  • Angle Valve or pressure reducing type valve (UL/FM approved)
  • Hose Rack frame material made of stainless steel: 1. Brush Finish, 2. Mirror Finish
  • RED (RAL 3000) Powder Coated Oven Baked
  • Hose rack frame
  • Hose rack nipple
  • Hose coupling
  • Fire Hose, 30 Meter. (UL Listed)
  • Fog nozzle (UL approved)
FIRE HOSE
Fire Hose Type Single jacket, light weight, thermoplastic lining with high-tenacity filament polyester yarn, UL listed.
Size & Color 1½" x 30Mtr., White 2½" x 30Mtr., White
Service Pressure 250 PSI 250 PSI250 PSI
Proof Pressure 500 PSI 500 PSI
Burst Pressure 750 PSI 750 PSI
COUPLINGS
Type 1-1½" NH Female Threaded Coupling, Brass 2-½" NH Female Threaded Coupling, Brass
ANGLE VALVE
Working Pressure 300 PSI 300 PSI
Test Pressure 600 PSI 600 PSI
NOZZLE
Inlet Size 1.5" Female NST Threaded 2.5" Female NST Threaded
Discharge rate (in full spray pattern) 130±5GPM @ 100PSI 205±5GPM @ 100PSI
